Features

  • Common 12,1 inch Touch-Display and per head 3,5 inch Touch-Display
  • Comfortable User Interface
  • Simple memory expansion through usb port
  • Remote diagnostic
  • Event protocol system
  • Standard Interfaces (USB, serial, Ethernet)
  • 48 Pixel Grafic
  • Various Print Modes
  • High Reliability
  • Integrated Solvent Recovery System for low usage and emissions
  • Script Functionality for complex applications
  • Robots and Axis-Control, Camera, Database Applications possible
  • Continuous Protocol of all Inksystem Data
  • Service friendly 5-Door System Design
  • Easy refillable 1 Liter reservoirs
  • Optional pigmented system with 2 stirrers
  • Internet Connection for Remote Control

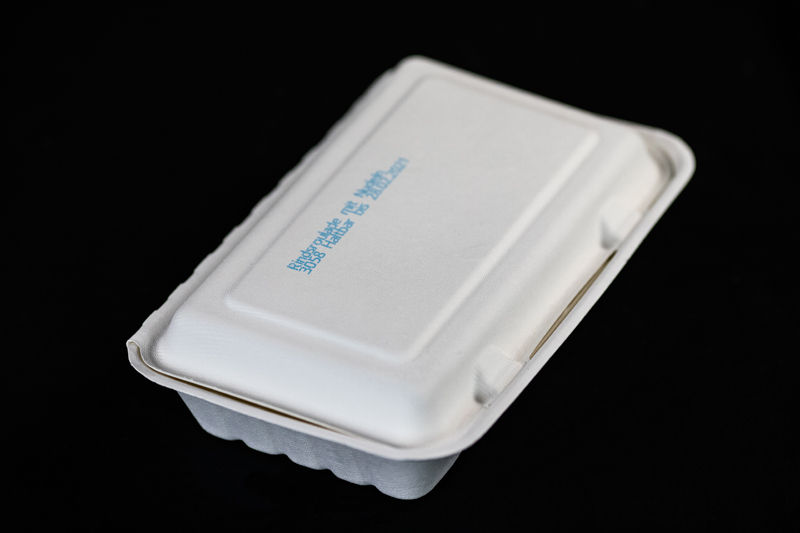

Applications

CodeCenter 2

The CodeCenter 2 consistently extends the production range. A set top box provides the extension by a second printhead. This is creating a high performant system at an attractive price.



 The operation of this system is identical to the CodeCenter. Based on the CodeCenter software, the 12 inch terminal provides access to both printheads independently or synchronized, whatever is required. Each printhead has its own 3.5 inch service display, which shows the state of the printhead, but also allows complete operation.



Technical Data

Housing

Stainless steel, IP54

Printhead Aluminium, anodized

Environment Temperature 5-45°C
Humidity 10-90% non cond.
Mains 80-240V~ 50/60 Hz

Interfaces Ethernet, USB, RS232
Printmodes each printhead: 5 Dot – 48 Dot Grafic and Highspeed
Printheight each printhead: 5 – 12 mm
Memory > 15 GByte, expandable
Connectors each printhead: Incremental encoder,
8 Inputs, 4 Outputs (all 24V)

Sizes

Cabinet

Printhead
